AKN Closed-door Single Crank High Precision Steel H Frame Press_Precision power press-Zhejiang Kemade Machinery Co., Ltd.

1.The fuselage adopt the process of high frequency quenching and tempering,the slider is processed by CNC boring and milling machine,The gears are processed by German gear grinding machine.

2.The crank,gear tooth and other friction parts are made of alloy steel,annealing process.

3. High Precision for punching,cutting,bending and blanking for steel sheet and metal parts;

4.Delta PLC,Italy OMPI clutch & brake,Japan TACO double solenoid valve,Japan NSK bearing, oil seal,Taiwan Kingair over loading protector bump,etc.

5.Kemade press is the high precision machine,reasonable new design, easy to operate,convenient & easy for die installation and large material processing.

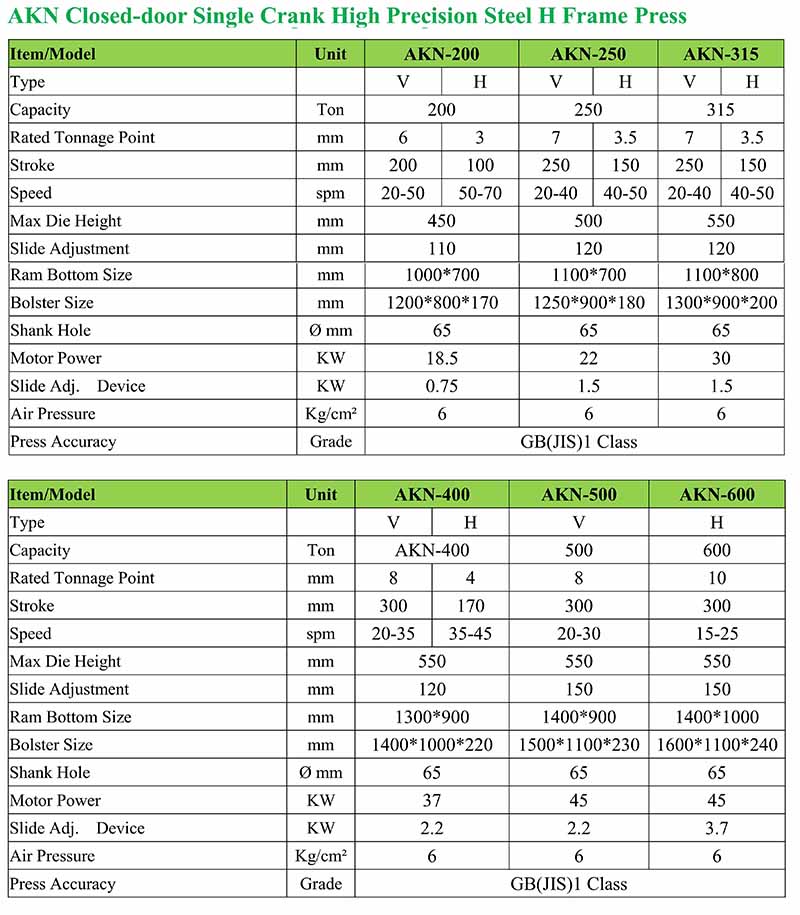

200ton-315ton

Item/Model	Unit	AKN-200		AKN-250		AKN-315
Type		V	H	V	H	V	H
Capacity	Ton	200		250		315
Rated Tonnage	mm	6	3	7	3.5	7	3.5
Stroke	mm	200	100	250	150	250	150
Speed	spm	20-50	50-70	20-40	40-50	20-40	40-50
Max Die	mm	450		500		550
Slide	mm	110		120		120
Ram Bottom Size	mm	1000*700		1100*700		1100*800
Bolster Size	mm	1200800170		1250900180		1300900200
Shank Hole	Ø mm	65		65		65
Motor Power	KW	18.5		22		30
Slide Adj.Device	KW	0.75		1.5		1.5
Air Pressure	Kg/cm2	6		6		6
Press Accuracy	Grade			GB(JIS)1 Class

400ton-600ton

Item/Model	Unit	AKN-400		AKN-500	AKN-600
Type		V	H	V	H
Capacity	Ton	AKN-400		500	600
Rated Tonnage	mm	8	4	8	10
Stroke	mm	300	170	300	300
Speed	spm	20-35	35-45	20-30	15-25
Max Die	mm	550		550	550
Slide	mm	120		150	150
Ram Bottom Size	mm	1300*900		1400*900	1400*1000
Bolster Size	mm	14001000220		15001100230	16001100240
Shank Hole	Ø mm	65		65	65
Motor Power	KW	37		45	45
Slide Adj.Device	KW	2.2		2.2	3.7
Air Pressure	Kg/cm2	6		6	6
Press Accuracy	Grade			GB(JIS)1 Class
