AKA Deep Throat High Precision Precision Steel C Frame Press

AKA Deep Throat High Precision Precision Steel C Frame Press
Details


       1.The fuselage adopt the process of high frequency quenching and tempering,the slider is processed by CNC boring and milling machine,The gears are processed by German gear grinding machine.


       2.The crank,gear tooth and other friction parts are made of alloy steel,annealing process.


       3. High Precision for punching,cutting,bending and blanking for steel sheet and metal parts;


       4.Delta PLC,Italy OMPI clutch & brake,Japan TACO double solenoid valve,Japan NSK bearing, oil seal,Taiwan Kingair over loading  protector bump,etc.


       5.Kemade press is the high precision machine,reasonable new design, easy to operate,convenient & easy for die installation and large material processing.


45ton-80ton

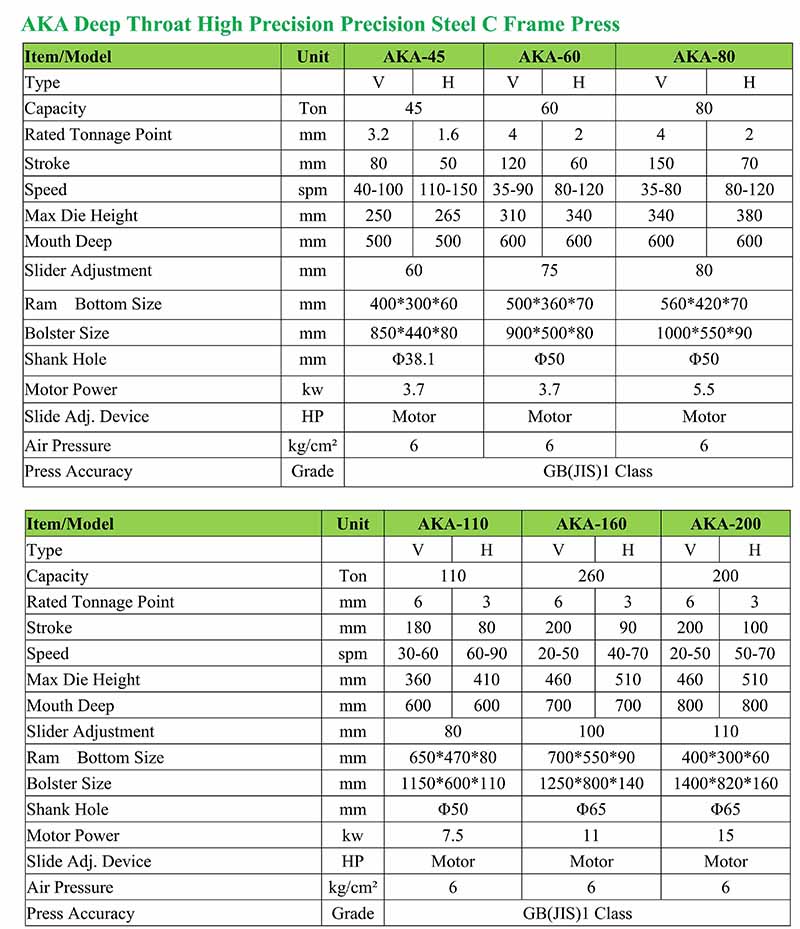

                               Item/Model

                               Unit

                               AKA-45

                               AKA-60

                               AKA-80

                               Type


                               V

                               H

                               V

                               H

                               V

                               H

                               Capacity

                               Ton

                               45

                               60

                               80

                               Rated Tonnage

                               mm

                               3.2

                               1.6

                               4

                               2

                               4

                               2

                               Stroke

                               mm

                               80

                               50

                               120

                               60

                               150

                               70

                               Speed

                               spm

                               40-100

                               110-150

                               35-90

                               80-120

                               35-80

                               80-120

                               Max Die

                               mm

                               250

                               265

                               310

                               340

                               340

                               380

                               Mouth Deep

                               mm

                               500

                               500

                               600

                               600

                               600

                               600

                               Slide

                               mm

                               60

                               75

                               80

                               Ram Bottom Size

                               mm

                               400*300*60

                               500*360*70

                               560*420*70

                               Bolster Size

                               mm

                               850*440*80

                               900*500*80

                               1000*550*90

                               Shank Hole

                               mm

                               Φ38.1

                               Φ50

                               Φ50

                               Motor Power

                               kw

                               3.7

                               3.7

                               5.5

                               Slide Adj.Device

                               HP

                               Motor

                               Motor

                               Motor

                               Air Pressure

                               kg/cm2

                               6

                               6

                               6

                               Press Accuracy

                               Grade




                               GB(JIS)1 Class



110ton-200ton

Item/ModelUnitAKA-110AKA-160AKA-200
Type
VHVHVH
CapacityTon110260200
Rated Tonnagemm636363
Strokemm1808020090200100
Speedspm30-6060-9020-5040-7020-5050-70
Max Diemm360410460510460510
Mouth Deepmm600600700700800800
Slidemm80100110
Ram Bottom Sizemm650*470*80700*550*90400*300*60
Bolster Sizemm1150*600*1101250*800*1401400*820*160
Shank HolemmΦ50Φ65Φ65
Motor Powerkw7.51115
Slide Adj.DeviceHPMotorMotorMotor
Air Pressurekg/cm2666
Press AccuracyGrade

GB(JIS)1 Class
