1.The fuselage adopt the process of high frequency quenching and tempering,the slider is processed by CNC boring and milling machine,The gears are processed by German gear grinding machine.
2.The crank,gear tooth and other friction parts are made of alloy steel,annealing process.
3. High Precision for punching,cutting,bending and blanking for steel sheet and metal parts;
4.Delta PLC,Italy OMPI clutch & brake,Japan TACO double solenoid valve,Japan NSK bearing, oil seal,Taiwan Kingair over loading protector bump,etc.
5.Kemade press is the high precision machine,reasonable new design, easy to operate,convenient & easy for die installation and large material processing.
110ton-315ton

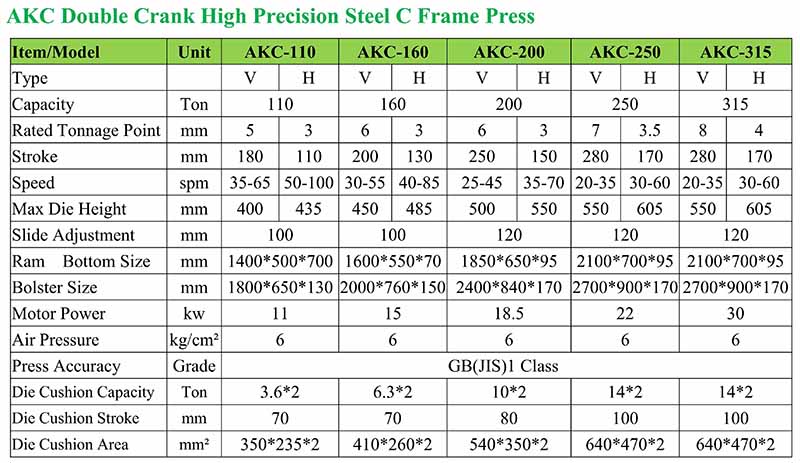

Item/Model | Unit | AKC-110 | AKC-160 | AKC-200 | AKC-250 | AKC-315 | |||||
Type | V | H | V | H | V | H | V | H | V | H | |
Capacity | Ton | 110 | 160 | 200 | 250 | 315 | |||||
Rated Tonnage | mm | 5 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 | 8 | 4 |
Stroke | mm | 180 | 110 | 200 | 130 | 250 | 150 | 280 | 170 | 280 | 170 |
Speed | spm | 35-65 | 50-100 | 30-55 | 40-85 | 25-45 | 35-70 | 20-35 | 30-60 | 20-35 | 30-60 |
Max Die | mm | 400 | 435 | 450 | 485 | 500 | 550 | 550 | 605 | 550 | 650 |
Slide | mm | 100 | 100 | 120 | 120 | 120 | |||||
Ram Bottom Size | mm | 1400*500*700 | 1600*550*70 | 1850*650*95 | 2100*700*95 | 2100*700*95 | |||||
Bolster Size | mm | 1800*650*130 | 2000*760*150 | 2400*840*170 | 2700*900*170 | 2700*900*170 | |||||
Motor Power | kw | 11 | 15 | 18.5 | 22 | 30 | |||||
Air Pressure | kg/cm2 | 6 | 6 | 6 | 6 | 6 | |||||
Press Accuracy | Grade | GB(JIS)1 Class | |||||||||
Die Cushion Capacity | Ton | 3.6*2 | 6.3*2 | 10*2 | 14*2 | 14*2 | |||||
Die Cushion Stroke | mm | 70 | 70 | 80 | 100 | 100 | |||||
Die Cushion Area | mm2 | 350*235*2 | 410*260*2 | 540*350*2 | 640*470*2 | 640*470*2 | |||||
