AKA Single Crank High Precision Steel C Frame Press_Precision power press-Zhejiang Kemade Machinery Co., Ltd.

1.The fuselage adopt the process of high frequency quenching and tempering,the slider is processed by CNC boring and milling machine,The gears are processed by German gear grinding machine.

2.The crank,gear tooth and other friction parts are made of alloy steel,annealing process.

3. High Precision for punching,cutting,bending and blanking for steel sheet and metal parts;

4.Delta PLC,Italy OMPI clutch & brake,Japan TACO double solenoid valve,Japan NSK bearing, oil seal,Taiwan Kingair over loading protector bump,etc.

5.Kemade press is the high precision machine,reasonable new design, easy to operate,convenient & easy for die installation and large material processing.

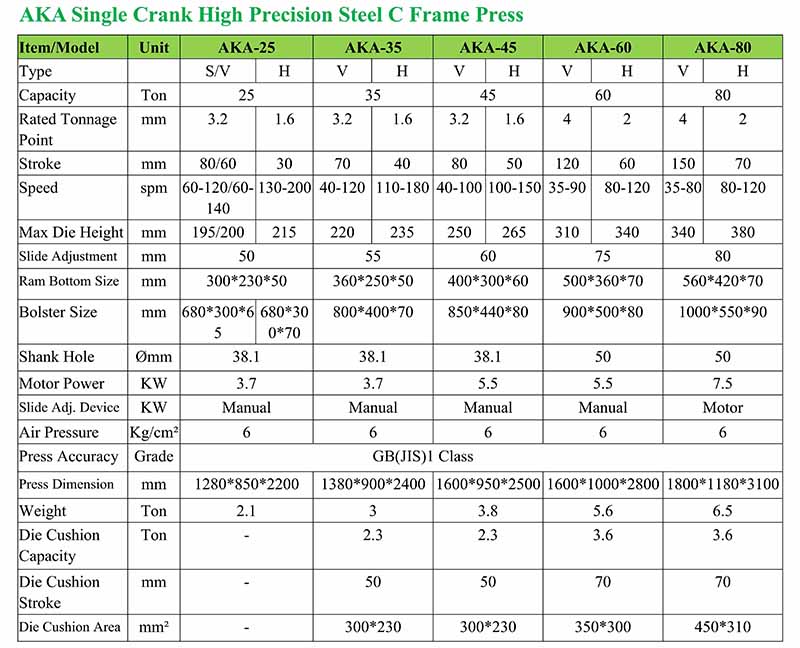

25ton-80ton

Item/Model	Unit	AKA-25		AKA-35		AKA-45		AKA-60		AKA-80
Type		S/V	H	V	H	V	H	V	H	V	H
Capacity	Ton	25		35		45		60		80
Rated Tonnage	mm	3.2	1.6	3.2	1.6	3.2	1.6	4	2	4	2
Stroke	mm	80/60	30	70	40	80	50	120	60	150	70
Speed	spm	60-120/60-140	130-200	40-120	110-180	40-100	100-150	35-90	80-120	35-80	80-120
Max Die	mm	195/200	215	220	235	250	265	310	340	340	380
Slide	mm	50		55		60		75		80
Ram Bottom Size	mm	30023050		36025050		40030060		50036070		56042070
Bolster Size	mm	68030065	68030070	80040070		85044080		90050080		100055090
Shank Hole	Ømm	38.1		38.1		38.1		50		50
Motor Power	KW	3.7		3.7		5.5		5.5		7.5
Slide Adj.Device	KW	Manual		Manual		Manual		Manual		Motor
Air Pressure	Kg/cm2	6		6		6		6		6
Press Accuracy	Grade				GB(JIS)1 Class
Press Dimension	mm	12808502200		13809002400		16009502500		160010002800		180011803050
Weight	Ton	2.1		3		3.8		5.6		6.5
Die Cushion Capacity	Ton	-		2.3		2.3		3.6		3.6
Die Cushion Stroke	mm	-		50		50		70		70
Die Cushion Area	mm2	-		300*230		300*230		350*300		450*310

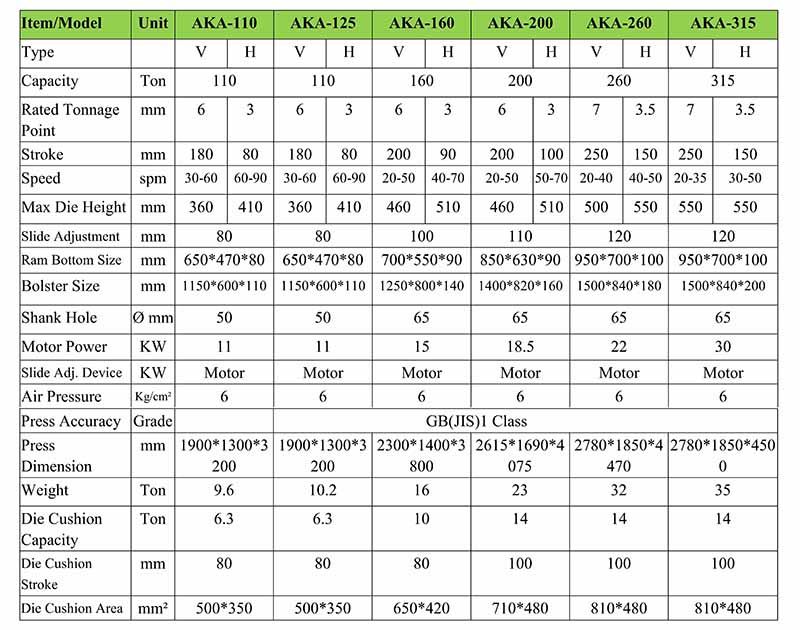

110ton-315ton

Item/Model	Unit	AKA-110		AKA-160		AKA-200		AKA-260		AKA-315
Type		V	H	V	H	V	H	V	H	V	H
Capacity	Ton	110		160		200		260		315
Rated Tonnage	mm	6	3	6	3	6	3	7	3.5	7	3.5
Stroke	mm	180	80	200	90	200	100	250	150	250	150
Speed	spm	30-60	60-90	20-50	40-70	20-50	50-70	20-40	40-50	20-35	30-50
Max Die	mm	360	410	460	510	460	510	500	550	550	550
Slide	mm	80		100		110		120		120
Ram Bottom Size	mm	65047080		70055090		85063090		950700100		950700100
Bolster Size	mm	1150600110		1250800140		1400820160		1500840180		1500840200
Shank Hole	Ø mm	50		65		65		65		65
Motor Power	KW	11		15		18.5		22		30
Slide Adj.Device	KW	Motor		Motor		Motor		Motor		Motor
Air Pressure	Kg/cm2	6		6		6		6		6
Press Accuracy	Grade					GB(JIS)1 Class
Press Dimension	mm	190013003200		230014003800		261516904075		278018504470		278018504500
Weight	Ton	9.6		16		23		32		35
Die Cushion Capacity	Ton	6.3		10		14		14		14
Die Cushion Stroke	mm	80		80		100		100		100
Die Cushion Area	mm2	500*350		650*420		710*480		810*480		810*480
